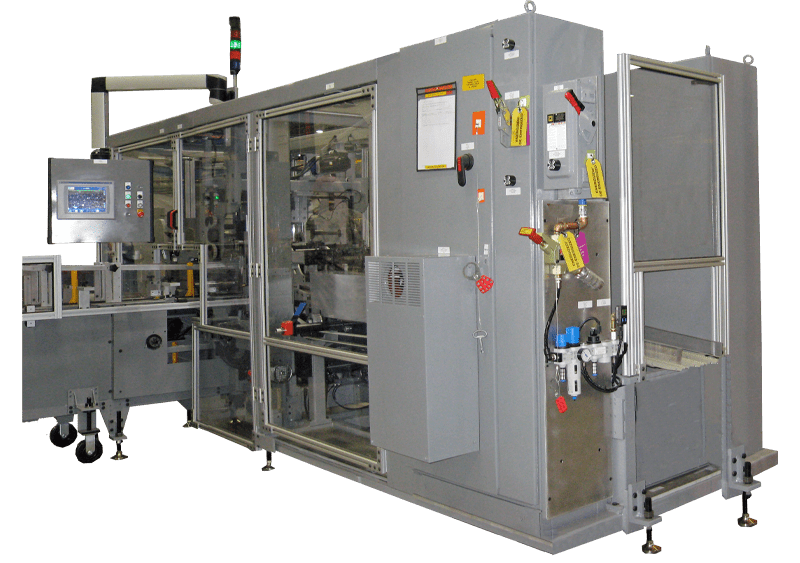

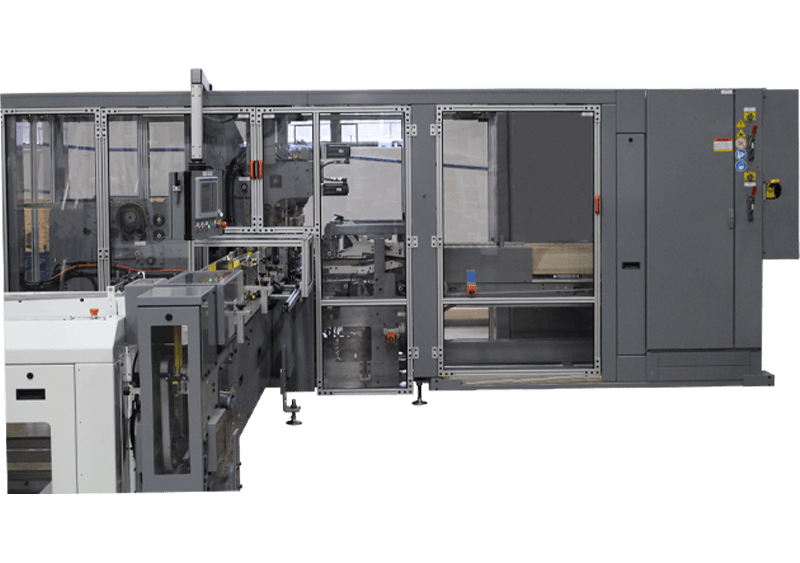

The Flat Pack Polywrapper (single or double stack) is one of the most reliable, versatile wrappers available.

The Flat Pack Polywrapper (single or double stack) is one of the most reliable, versatile wrappers available. Servo motors provide continuous product and polywrap control for top performance. The motors minimize the need for mechanical wear parts and increase machine changeover efficiency.

  • Specifications
    Typical ApplicationsNapkins
    Tissues
    Parent Roll DiameterUp to 19.7″ (500 mm)
    Parent Roll WidthUp to 24.8″ (630 mm)
    Parent Roll Core Diameter2.76″ to 3″ (70 mm to 76 mm)
    Parent Roll Change (Approximate Time)3 minutes
    Product Changeover Time20 to 25 minutes
    MaterialPolyethylene (PE)
    Polypropylene (PP)
    Polyethylene (PE) Thickness1.4 mil to 1.6 mil
    Polypropylene (PP) Thickness0.8 mil to 1.25 mil
    Product Width Range4.7″ to 16.5″ (120 mm to 420 mm)
    Product Length Range3.3″ to 8.3″ (85 mm to 210 mm)
    Product Height Range0.8″ to 6.3″ (20 mm to 160 mm)
    Pack Width Range4.7″ to 16.5″ (120 mm to 420 mm)
    Pack Length Range3.3″ to 8.3″ (85 mm to 210 mm)
    Pack Height Range0.8″ to 6.3″ (20 mm to 160 mm)
