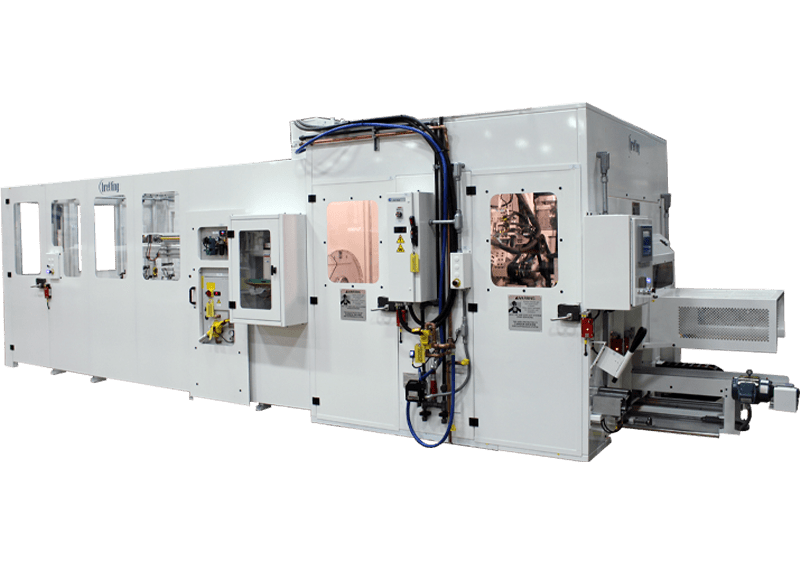

The Industrial Roll Log Saw can be incorporated into an existing rewinder line and is ideal for higher density logs.

The Industrial Roll Log Saw can be incorporated into an existing rewinder line and is ideal for higher density logs. Available as a single-head, two-lane saw, or a dual-head, four-lane saw that cuts jumbo toilet rolls and jumbo wound toweling.

  • Specifications
    Productivity (Two-Lane)Up to 75 clips/min
    Productivity (Four-Lane)Up to 150 clips/min
    Log Length90″ to 115″ (2286 mm to 2921 mm)
    Under 90″ (2286 mm) available
    Up to 140″ (3556 mm) available
    Log Diameter Range5.5″ to 12″ (140 mm to 305 mm)
    Clamping Range±0.188″
    4.7 mm Product Diameter Tolerance (within Log Diameter Range)
    Core Diameter Range1.5″ to 3.3″ (38 mm to 84 mm)
    Clip Length Range3.5″ to 12″ (89 mm to 305 mm)
    DensityUp to 22 lb./ft³ (352 kg/m³)
    Minimum Blade Diameter27″ (686 mm)
    Maximum Blade Diameter30″ (762 mm)
    Grinding Dust RemovalOptional System with Wet Scrubber
